High Speed Automatic Blowing Machine With Human - Machine Interface Touch Screen

Zhangjiagang Eceng Machinery Co.,Ltd
Contact Now

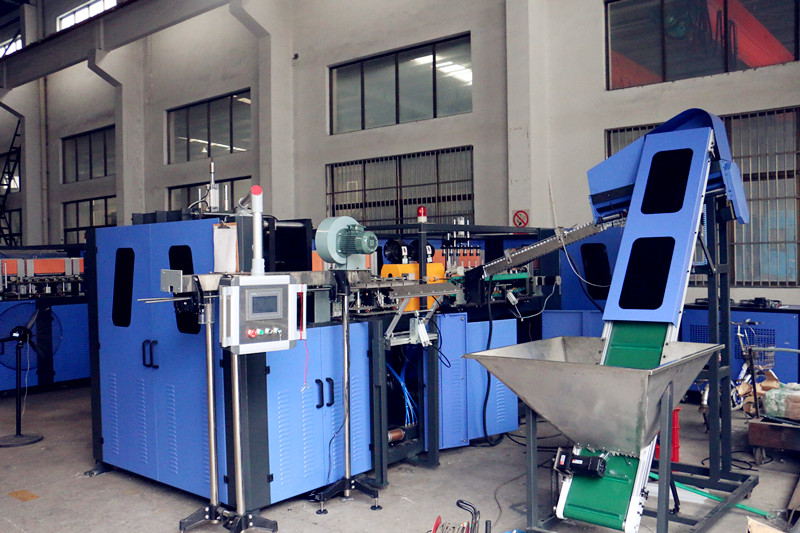

High Speed Automatic Blowing Machine With Human - Machine Interface Touch Screen

Brand Name : Eceng

Model Number : YCQ-2L-4

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : 4

PLC : Mitsubishi

Cylinder : SMC

warranty : 1 year

capacity : 4000

color : orange

Contact Now

Full Automatic Pet Bottle Blow Molding Machine Pet Blowing Machine

Technical Sheet ---- PET soft bottle blow moulding machine

Item YCQ-2L-4

Bottle type specification

Cavity 4
Theory output (PCS/HR) 4000-5000
Max. volume (L) 2L
Bottle mouth maximum overall diameter (mm) 28-38mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Power specifications

Light tube quantity 32pcs
Light tube power 1.25kw
Maximum heating power 40kw
All electric machine installation 43kw
Actual consumption 21.5kw

Air pressure specification

Work pressure 7-9kg/cM2
Low-pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/cM2
Higher -pressure gas consumption 3000 Ltr/min

Frozen water specification

Work pressure 5-6 kg/cM2
Temperature range 10°C
Consumption 8000kcal/hr
Frozen water flow 88Ltr/min

Machine specification

Size of the machine 4.5x1.6x1.9 (m)

Machine Parts----PET soft bottle blow moulding machine

Name Brand Original
Blowing cylinder FESTO Germany
Mould closing and opening cylinder FESTO Germany
valve FESTO Germany
PLC MITSUBISHI Japan
HMI SCRENN WINVIEW 506L Taiwan
Switch OMRON Japan

Machine Features ---- PET soft bottle blow moulding machine

  1. Automatic perform input and ready bottle output system.
  2. Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
  3. Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
  4. The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
  5. Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
  6. Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.
  7. Storing more than 7 kinds specification for making bottle.
  8. Adopt latest international air pneumatic.
  9. In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.

Note ----- PET soft bottle blow moulding machine

  1. This machine only need one worker to operate.
  2. Standard export packing suitable for sea journey .
  3. Delivery time: 60 days on receipt of the deposit.
  4. Warranty: one year with one year exchange damage parts .
  5. The offer is valid in 30days.
  6. We will install and test the machines and have training lessons abroad, but the round tickets, accommodation, eating, and the allowance of USD 80per day per person will be on customer's side.
  7. All machine electric Power is about 50KW .

High Speed Automatic Blowing Machine With Human - Machine Interface Touch Screen
