2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle

Product Categories

Zhangjiagang Eceng Machinery Co.,Ltd

Contact Now

Name: 2 Cavity Automatic Blowing Machine For 500ml 2500ml Plastic Oil Bottle
Brand: Eceng
Price: 15000 USD

Brand Name : Eceng

Model Number : YCQ-2L-2

Certification : CE&ISO&SGS

Place of Origin : China

MOQ : 1 set

Price : 15000-25000USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 15 working days

Packaging Details : Film pack

cavity : 2

color : orange

capacity : 2200

PLC : Mitsubishi

cylinder : SMC

Contact Now

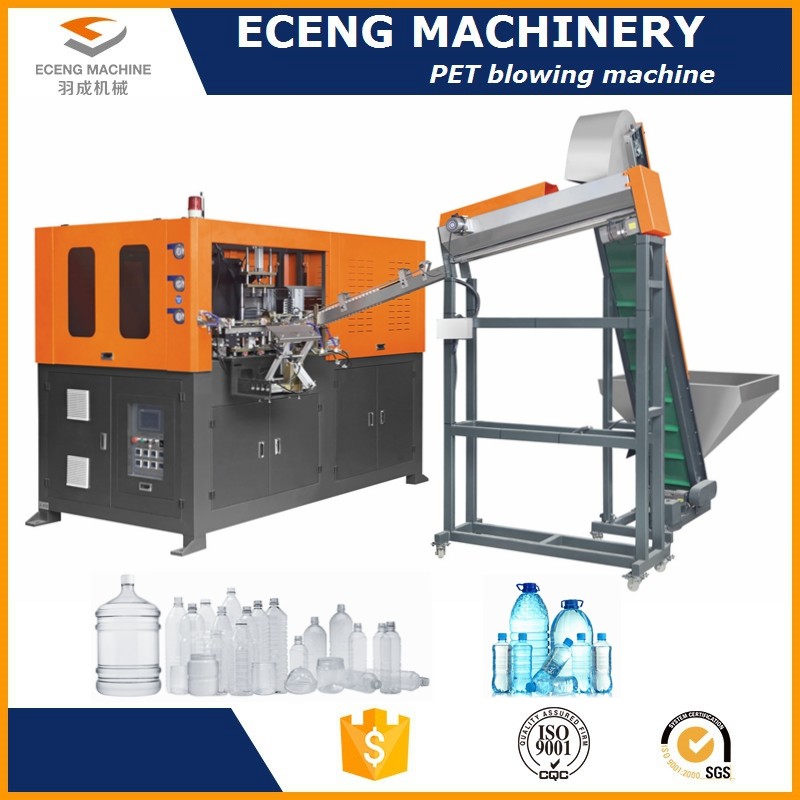

2 cavity automatic PET bottle blowing machine for 500ml-2500ml bottle

2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle

	Model	YCQ-2L-2	YCQ-2L-3	YCQ-2L-4
Bottle type specification	Cavity	2	3	4
	Theory output	2400-2700	3500-4000	4500-5000
	Max.volume	2L	2L	2L
	Bottle mouth maximum overall diameter	80mm	28-38mm	28-38mm
	Bottle biggest diameter	100mm	100mm	100mm
	Bottle maximum height	330mm	330mm	330mm
Power specifications	Light tube quantity	32pcs	32pcs	32pcs
	Light tube power	0.75KW	1.25KW	1.25KW
	Maximum heating power	24KW	40KW	40KW
	All electric machine installation	27KW	43KW	43KW
	Actual consumption	8.1KW	21.5KW	21.5KW
Air pressure specification	Work pressure	7-9kg/c㎡	7-9kg/c㎡	7-9kg/c㎡
	Low-pressure gas consumption	1000L/min	1600L/min	1600L/min
	Blow bottle pressure	25-35kg/c㎡	25-35kg/c㎡	25-35kg/c㎡
	Higher -pressure gas consumption	1500Ltr/min	2500Ltr/min	3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/c㎡	5-6 kg/c㎡	5-6 kg/c㎡
	Temperature range	10℃	10℃	10℃
	Consumption	5000kcal/hr	8000kcal/hr	8000kcal/hr

	Forzen water flow	30L/min	88L/min	88L/min
Machine specification	Size of the machine	2.25x1.6x1.7	4.0x1.6x1.9	4.5x1.6x1.9
Machine specification	Weight of the machine	2.5ton	3ton	3.5ton

	Model	YCQ-2L-2	YCQ-2L-3	YCQ-2L-4
Bottle type specification	Cavity	2	3	4
	Theory output	2400-2700	3500-4000	4500-5000
	Max.volume	2L	2L	2L
	Bottle mouth maximum overall diameter	80mm	28-38mm	28-38mm
	Bottle biggest diameter	100mm	100mm	100mm
	Bottle maximum height	330mm	330mm	330mm
Power specifications	Light tube quantity	32pcs	32pcs	32pcs
	Light tube power	0.75KW	1.25KW	1.25KW
	Maximum heating power	24KW	40KW	40KW
	All electric machine installation	27KW	43KW	43KW
	Actual consumption	8.1KW	21.5KW	21.5KW
Air pressure specification	Work pressure	7-9kg/c㎡	7-9kg/c㎡	7-9kg/c㎡
	Low-pressure gas consumption	1000L/min	1600L/min	1600L/min
	Blow bottle pressure	25-35kg/c㎡	25-35kg/c㎡	25-35kg/c㎡
	Higher -pressure gas consumption	1500Ltr/min	2500Ltr/min	3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/c㎡	5-6 kg/c㎡	5-6 kg/c㎡
	Temperature range	10℃	10℃	10℃
	Consumption	5000kcal/hr	8000kcal/hr	8000kcal/hr

	Forzen water flow	30L/min	88L/min	88L/min
Machine specification	Size of the machine	2.25x1.6x1.7	4.0x1.6x1.9	4.5x1.6x1.9
Machine specification	Weight of the machine	2.5ton	3ton	3.5ton

2 Cavity Automatic Blowing Machine For 500ml - 2500ml Plastic Oil Bottle

Our Services

1. Reply the email and take action in 24 hours;

2. 100% Quality inspection before the shipment;

3. Can trainning clients operator for free in seller`s factory

4. Engineer overseas is avilable

5. Blowing mould and injection mould made orginal

6. Auxiliary machines for complate line.

7.Custimized design as requirements.
