42KW Heating Power Pet Stretch Blow Molding Machine With Blowing Cylinder

Product Categories

Zhangjiagang Eceng Machinery Co.,Ltd

Contact Now

42KW Heating Power Pet Stretch Blow Molding Machine With Blowing Cylinder

Name: 42KW Heating Power Pet Stretch Blow Molding Machine With Blowing Cylinder
Brand: Eceng
Price: 1 USD

China 42KW Heating Power Pet Stretch Blow Molding Machine With Blowing Cylinder wholesale

Brand Name : Eceng

Model Number : YCQ-2L-4

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : 4

PLC : Mitsubishi

cylinder : SMC

color : orange

capacity : 4000

warranty : 1 year

Contact Now

Preform customize pet bottle blowing moulding machine plastic bottle making moulding machine

Product Application

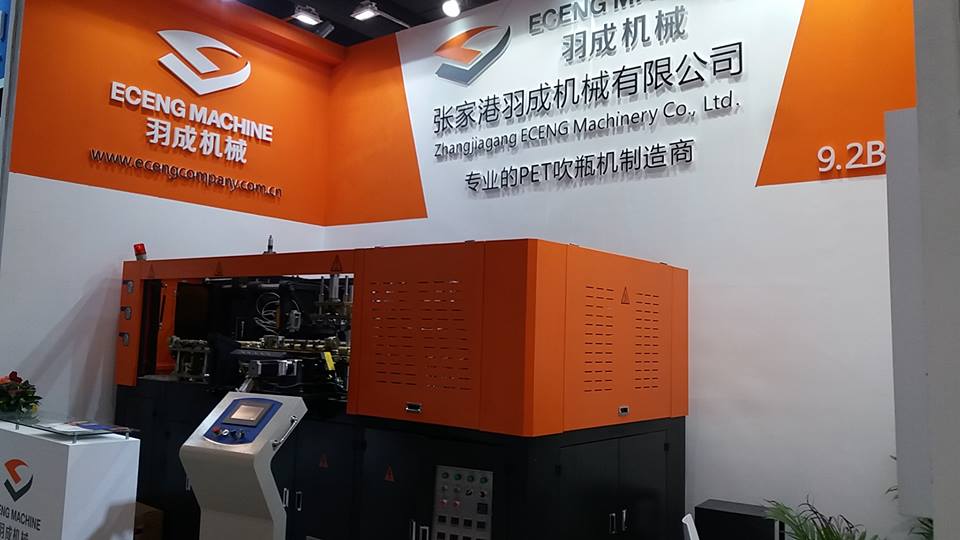

YCQ-4000 is the fastest liner blow molding machine in mainland of China by now. reaches around 4000BPH for 500ML bottle. It‘’s baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.

YCQ-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. YCQ-4000 consists of three main parts: preform loading system, Heater channel & blow station.

YCQ-4000 Fully-auto blow molding machine
CONTAINER	Max container volume	L	2
	Cavity		4
	Theoretical output	BPH	4000
ELECTRICAL	Heating power	KW	42
	Max heating power	KW	60
	Installed power	KW	64
COMPRESSEDAIR	Operating Power	MPA	0.7
	Air consuming	L/min	1400
	Blowing pressure	MPA	3.0
MACHINE	SIZE(LWH)	MM	360020002030
	Weight	KG	3500
	Clamping force	KN	400

Machine Parts

Name	Brand	Original
Blowing cylinder	FESTO	Germany
Mould closing and opening cylinder	FESTO	Germany
valve	FESTO	Germany
PLC	MITSUBISHI	Japan
HMI SCRENN	WINVIEW 506L	Taiwan
Switch	OMRON	Japan
