Intelligent Pet Bottle Blowing Machine / Plastic Bottle Machine For 2 Liter Bottle

Blowing Machine for 2 Liter Bottle/Automatic PET Blowing Machine

Machine description and features

A:Brief Introduction:

The Series Full Automatic PET stretch blow molding machine can produce all kinds of PET plastic bottles,water bottles,carbonated drink bottles,Hot juice,edible oil and other packing container,output from 2500bph to 6000bph,volume from 0.1 to 1.5L.

This automatic blowing machine with simple structure,easy operation,reliable performance,high output,with novel design of conveyor,available to be connected with bottled production line smoothly and directly.Main adopts Festo servo motor and electrical positioning system German brand are applied in preform conveyor.

It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.

1).High Automatization

2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.

3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.

4).High Speed:6000BPH(6-cavity), 8000BPH(8-cavity), 12000BPH(12-cavity), 16000BPH(16-cavity).

5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.

6).Low Cost:Low consumption of electricity, air and water.

7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.

B:Settings:

a).PLC colour display: SIEMENS(GERMANY)

b).Pneumatic parts:FESTO(GERMANY)

c).Controller of preform transfer:Servo motor National(JAPAN)

d).Other electric parts are all world-famous brand

C:Machine Features:

1. Stable performance with advanced PLC.

2. Conveying preforms automatically with conveyor.

3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute

in the rails simultaneously in the infrared preheater.

4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the

length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic

thermostatic apparatus.

5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case

of a breakdown in certain procedure.

6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing

and action into three parts in the air pressure diagram of the machine.

8. Strong clamping force with high pressure and double crank links to lock the mold.

9. Two ways of operating: automatic and manual.

10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine

easier to understand.

11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

12. Contamination is avoided for the bottle body.

13. Ideal effect of the chilling with the chilling system.

14. Easy installation and starting

15. Low rejection rate: less than 0.2 percent.

pet bottle making machine

plastic bottle making machine

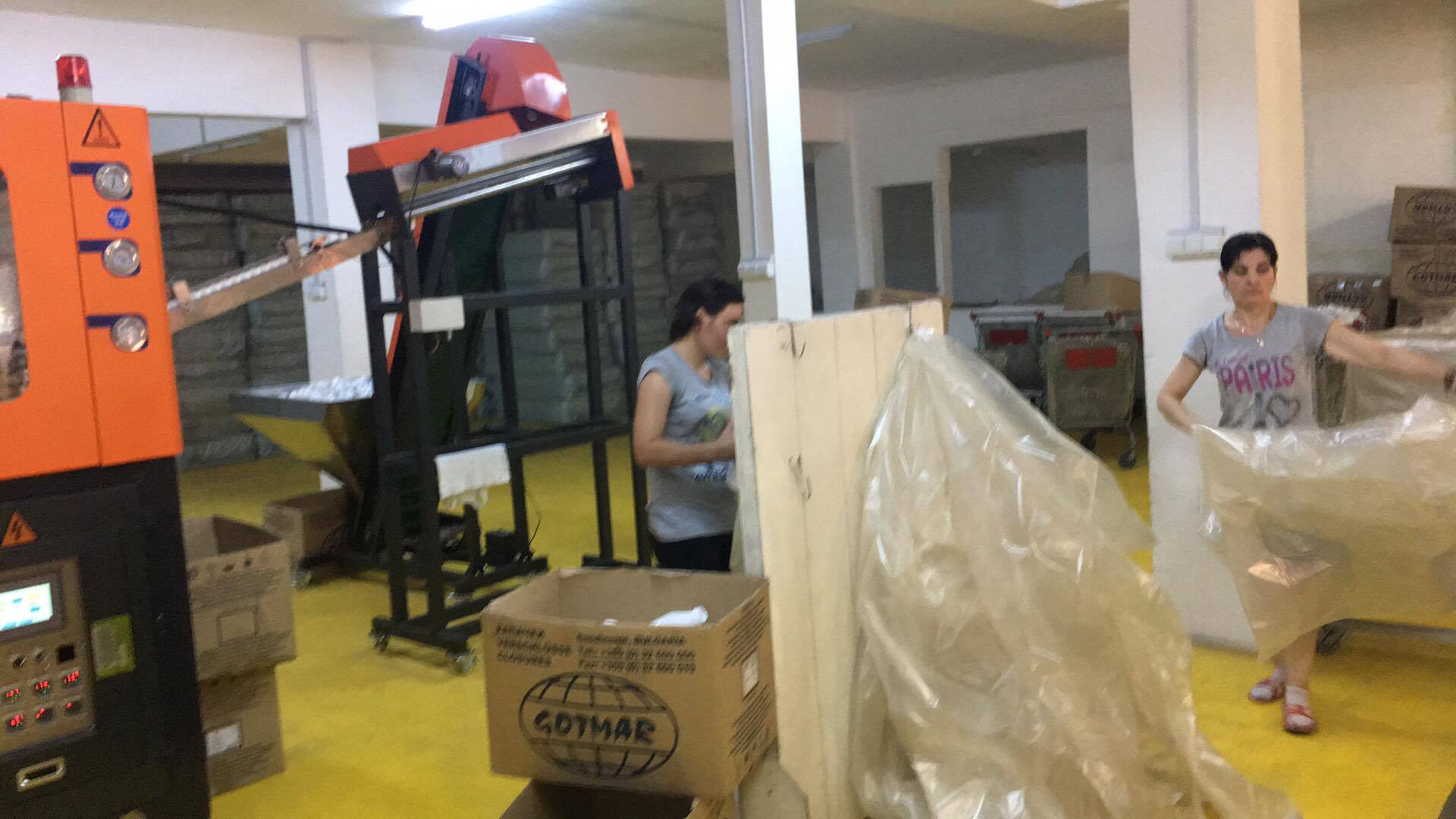

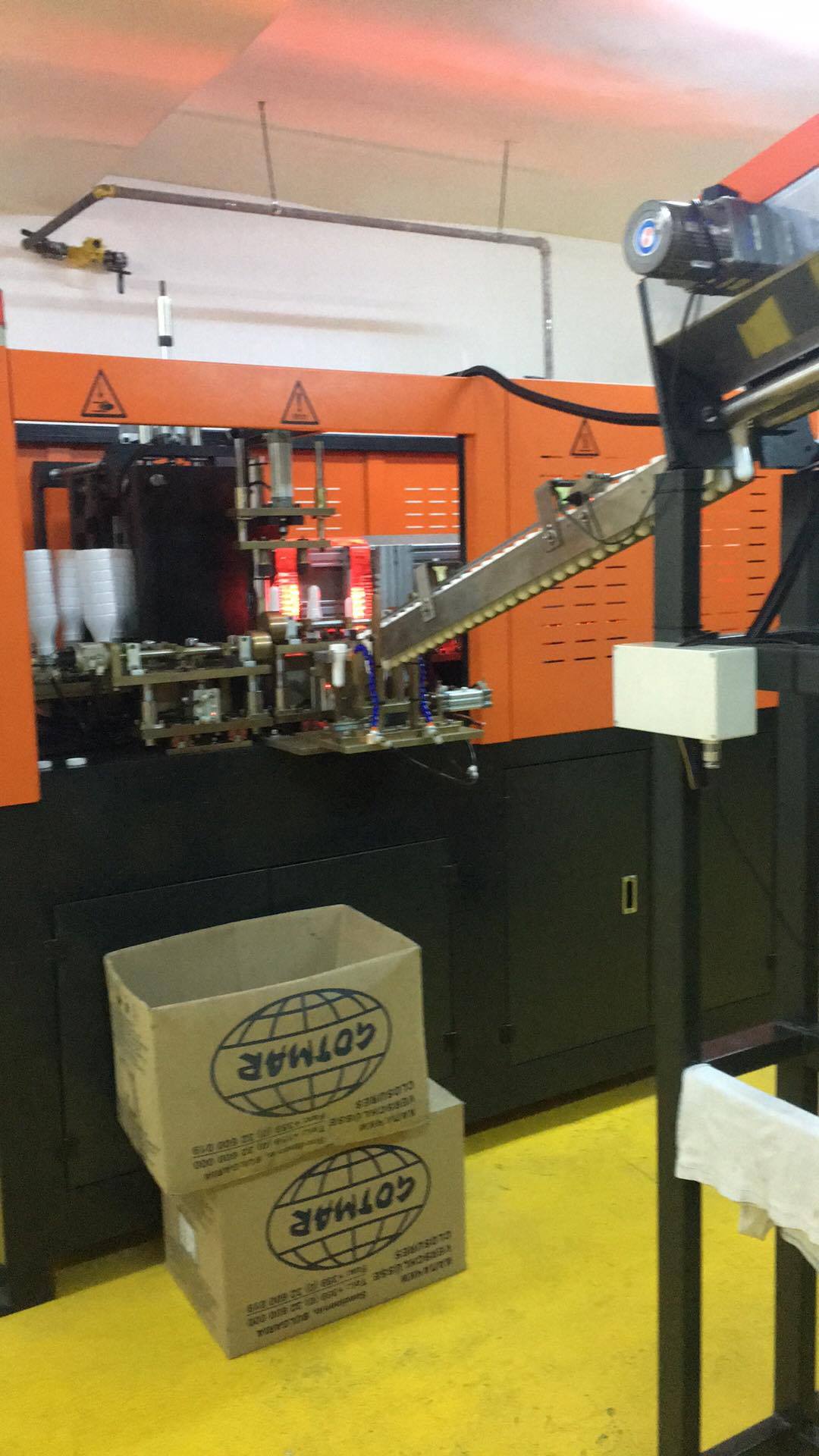

Intelligent Pet Bottle Blowing Machine / Plastic Bottle Machine For 2 Liter Bottle Images
