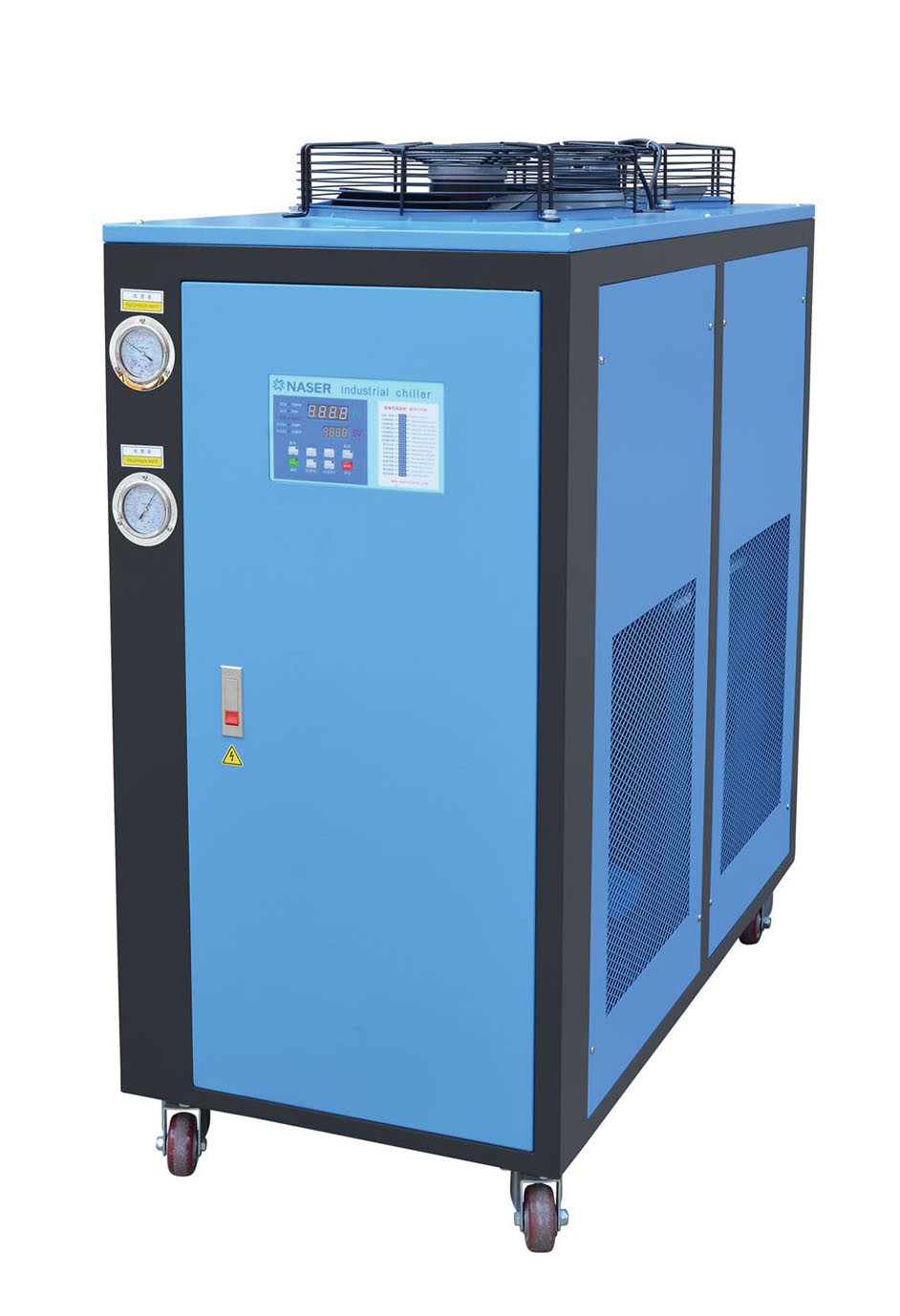

Blue 5HP Industrial Air Cooled Chiller With Motor Overload Protection Function

Product Categories

Zhangjiagang Eceng Machinery Co.,Ltd

Contact Now

Name: Blue 5HP Industrial Air Cooled Chiller With Motor Overload Protection Function
Brand: Eceng
Price: 1 USD

Brand Name : Eceng

Model Number : YC-3HP

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15sets per month

Delivery Time : 15working days

Packaging Details : Film pack

warranty : 1 years

type : air-cooled

color : Blue

pump flow : 28m

weight : 185KG

voltage : 380V

Contact Now

5HP Air Cooled Screw Chiller,Industrial Air-cooled Chiller Supplier ,Industrial air chiller

	Model	ZCL-A
Parameter		3	5	8	10	12
Cooling Capacity	KW /50HZ	7.8	13	21	26	31.2
	KW /60HZ	9.45	15.75	25.2	31.5	37.8
	Kcal/Hr /50Hz	6810	11350	18160	22700	27250
	Kcal/Hr /60Hz	8400	13000	20800	26000	31200
Input Power	KW	2.8	4.2	6.7	8.3	10.2
Power Supply		3 φ380V/ 50HZ
Refrigerant	Type	R22(R407)
Refrigerant	Type of control	Capillary Vessel	Expansion Valve
Compressor	Type	Hermetic Piston (Scroll)
Condenser	Type	Air Cooled Shell and Tube Highly effective red copper pipe socket string aluminum wing piece + low noise axial fan
Condenser	Cooling Air Flow(m3/h)	3000	5000	8000	10000	12000
Evaporator	Type	tank with coil	(shell and tube)
	Chilled fluid flow(m3/h)	1.27	2.13	3.27	4.26	4.91
	Volume(L)	70	130	220	220	300
	Inlet and Outlet Pipe Diameter (inch)	1"	1"	1-1/2"	1-1/2"	1-1/2"
Internal Pump	Horsepower (kw)	0.37	0.75	0.75	1.5	1.5
Internal Pump	Lift(m)	25	25	25	25	25
Safety Protection	compressor over temperature, over current, high and low pressure, over temperature,flow Switch, phase sequence, phase-missing, exhaust overheating, antifreezing
Weight	KG	135	258	378	417	530
Dimension	mm	9007001060	12507501100	13608001400	14508501400	15508501410

Payment Terms : BY T/T, L/C, Western Union
