Professional Air Cooled Scroll Chiller Built - In Automatic Water Device

Professional water cooled chiller with CE certificate

molding cycle, also they are available in the cooling of equipment in order to maintain a normal temperature. Besides, they are suitable for other industries with the need of cooling.

All models are equipped with compressor and motor overload protection, phase shortage and reversal alarms, anti-freeze thermostat, pressure gauges, etc. They feature excellent performance and long lifespan. The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

Relevant Area

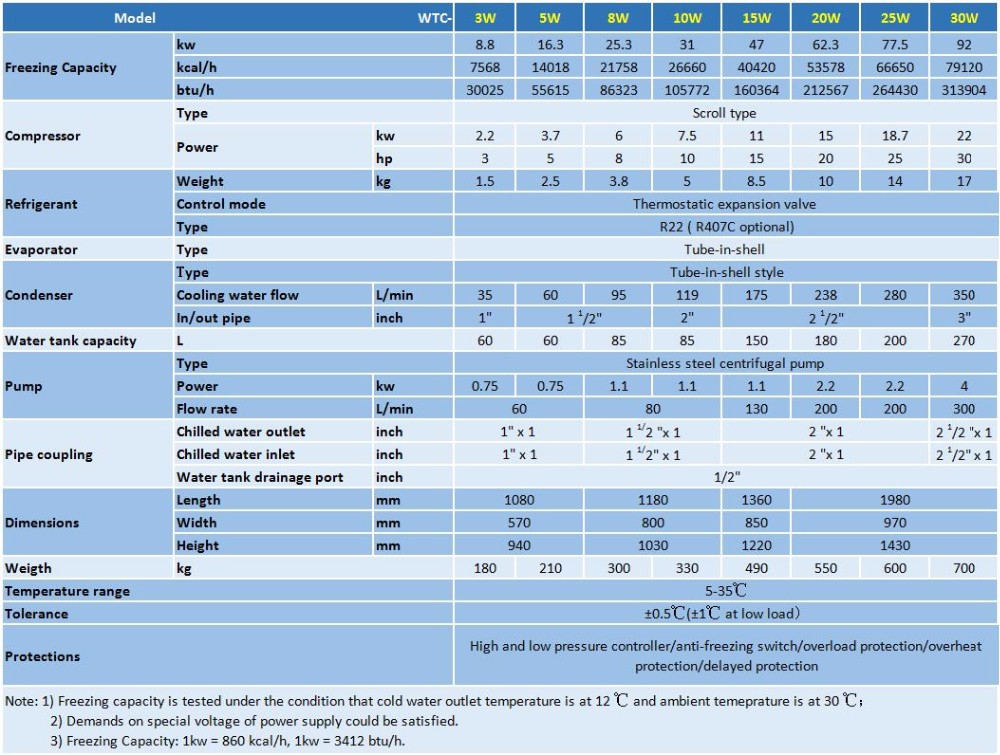

More Specifications of industrial water cooled water chiller WTC-W

(Higher models can be made no displaying on the table, please consult the sales)

Features:

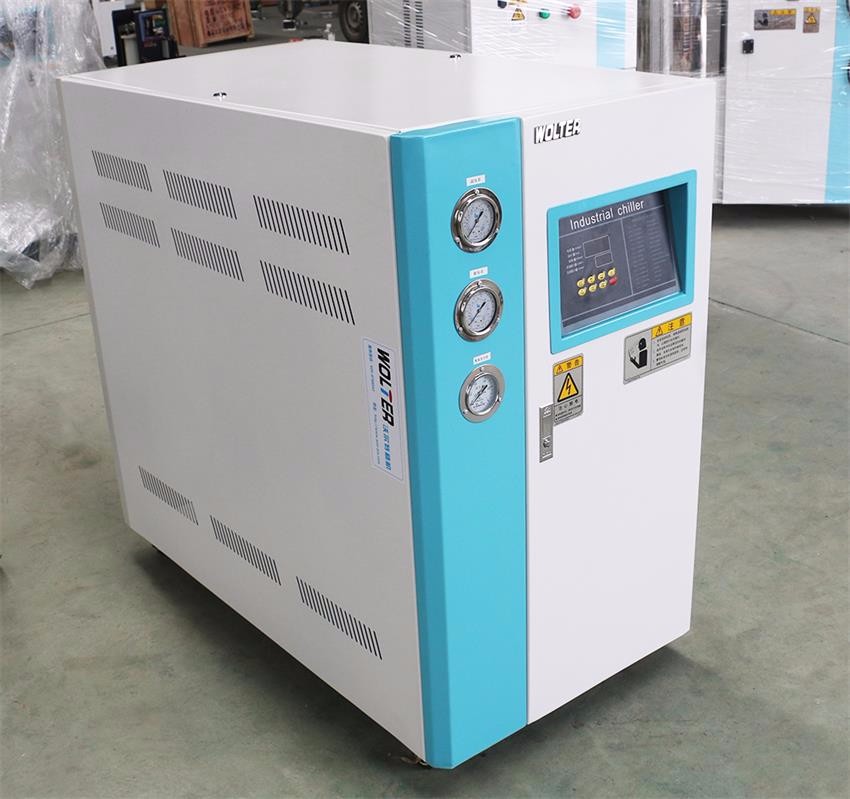

(China manufacture of WTC-5W industrial water cooled chiller)

1. Cooling range 5~35℃ .
2. Adopts stainless steel made insulated water tank and evaporator.
3. Equipped with anti-freeze thermostat.
4. Heavy duty 3-phase pump ensures no blockages and high torque.
5. Refrigerant loop controlled by high and low pressure switches.
6. R22 refrigerant is used as standard and optional R407 for efficient cooling.
7. Refrigeration loop controlled by high and low pressure switches.
8. Compressor and pump overload relays.
9. Adopt imported temperature controller maintains an accuracy of ±0.5℃.
10. All adopt imported compressors.
11. Compact design,easy to operate and maintain.
12. Low pressure pumps are standard configurations,while middle or high pressure pumps are optionally available.
13. Level meter of water tank is available as an option.
14. Expansion valve for accurate adjustment of refrigerant.
15. WTC-W water-cooled type adopts tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
16. WTC-A air-cooled type adopts fin condenser design without any need of cooling water for excellent heat transfer and rapid cooling.
