Home > Semi Auto Blowing Machine >

1800 Pcs / H Semi Automatic Blow Moulding Machine For 5 L Edible Oil Bottles

Product Categories

Zhangjiagang Eceng Machinery Co.,Ltd

Contact Now

Name: 1800 Pcs H Semi Automatic Blow Moulding Machine For 5 L Edible Oil Bottles
Brand: Eceng
Price: 1 USD

Brand Name : Eceng

Model Number : YC-5L-1

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 15working days

Packaging Details : Film pack

warranty : 1 year

power : 16KW

Voltage : 220/380

capacity : 500

volumer : under 5L

Contact Now

semi 5L PET bottle blow molding machine Model:YC-5L-1

Technical Parameter

Main machine (blowert + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	5
	Max. preform neck size(mm)	150
	Max. product diameter(mm)	200
	Max. product height (mm)	400
	Cavities	1
Blow molding part	Die force (KN)	120
	Die stroke (mm)	320
	Max. mould size(mm)	390*350
	Mould thickness	Adjustable
	Mould spacing(mm)	500
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	350
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1000-1800
	Machine size(LxWxH)(m)	1.560.71.9
	Machine weight(KG)	700
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.450.651.15
	Oven weight (KG)	330

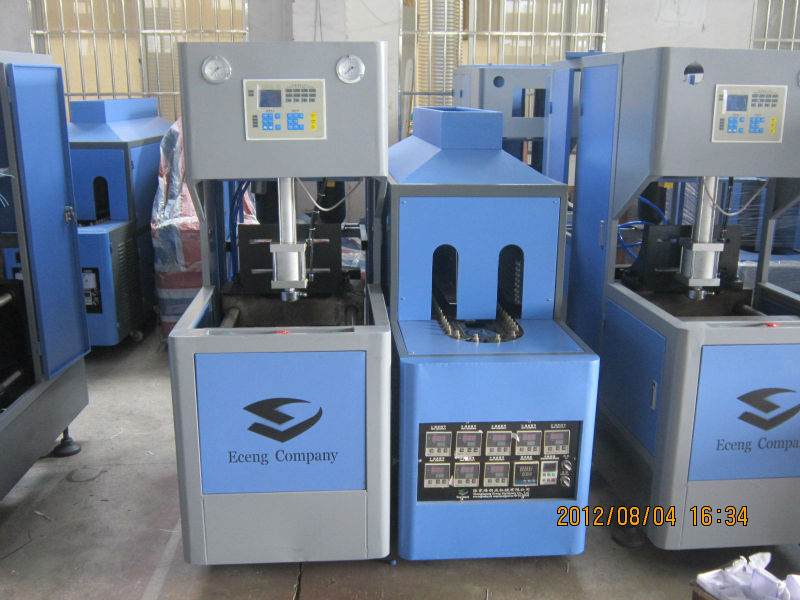

Machine Pictures

1800 Pcs / H Semi Automatic Blow Moulding Machine For 5 L Edible Oil Bottles

Properties

•Controlled by KBS blowding machine computer. Operate consistently and simply

•Pneumatic elements from AIRTAC (German) and SMC (Japan)

•Energy-saving and environmentally friendly design. Mechanical units are compact and rational

•Malfunction alert and diagnostic units allow easy maintenance

•Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc

•Oven can be made according the different preform requirements of customers
