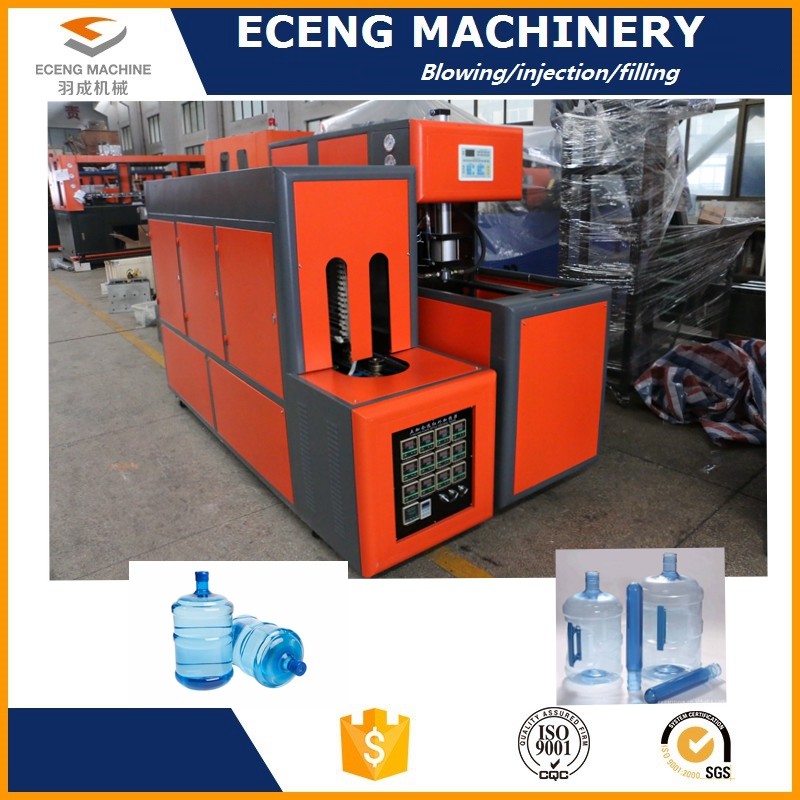

5gallon semi automatic plastic PET blow moulding machine 10-20L
YC-20L-1 is to produce 5gallon water bottle.Machine is designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. It is fit to blow carbonated beverage bottles, mineral water bottles, cooking oil bottles , especially oil bottles with handles.
Technology advantage:
Special design,high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation,no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke,quick action
All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
Hig dead-weigh, ensure the steady during the opeartion
Parameters:
| | | | |
| Main machine | Model type | YC-10L-1 | YC-20L-1 |
| Product Spec | Max. product volume(L/cav) | 10 | 20 |
| Max. preform neck size(mm) | 180 | 200 |
| Max. product diameter(mm) | 300 | 400 |
| Max. product height (mm) | 480 | 600 |
| Cavities | 1 | 1 |
| Blow molding part | Die force (KN) | 150 | 150 |
| Die stroke (mm) | 340 | 340 |
| Max. mould size(mm) | 380*450 | 420*500 |
| Mould thickness | adjustable | adjustable |
| Mould spacing(mm) | adjustable | 400 |
| Max. pulling stroke(mm) | 500 | 500 |
| Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 |
Operation air pressure consumption
(1tr/min) | 560 | 560 |
| Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 |
| Blow air pressure consumption (1tr/min) | 650 | 650 |
| Actual Output(pcs/h) | 100-150 | 80-100 |
| Machine size(LxWxH)(m) | 2.0*0.75*1.8 | 2.2*0.75*1.8 |
| Machine weight(KG) | 1000 | 1000 |
| Oven | Temperature grade(rate) | 8 | 8 |
| Heating time(S) | 90-200 | 90-200 |
| Voltage(V) | 220 | 220 |
| Frequency(HZ) | 50/60 | 50/60 |
| Total power(KW) | 15-40 | 15-40 |
| Oven Size (LxWxH) | 2.37*0.68*1.65 | 2.9*0.68*1.65 |
| Oven weight (KG) | 380 | 380 |
Our Services
1. Reply the email and take action in 24 hours;
2. 100% Quality inspection before the shipment;
3. Can trainning clients operator for free in seller`s factory
4. Engineer overseas is avilable
5. Blowing mould and injection mould made orginal
6. Auxiliary machines for complate line.
7.Custimized design as requirements.
