High Speed 3 In 1 Filling Machine With Automatic Washing And Capping Function

Name: High Speed 3 In 1 Filling Machine With Automatic Washing And Capping Function
Brand: Eceng
Price: 1 USD

Brand Name : Eceng

Model Number : QGF-450

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

Filling heads : 3

Volume(L) : 20

Capacity(bph) : 450

Gas consumption(m3/min) : 0.8

Motor power(kw) : 5.6

Weight(kg) : 2100

Contact Now

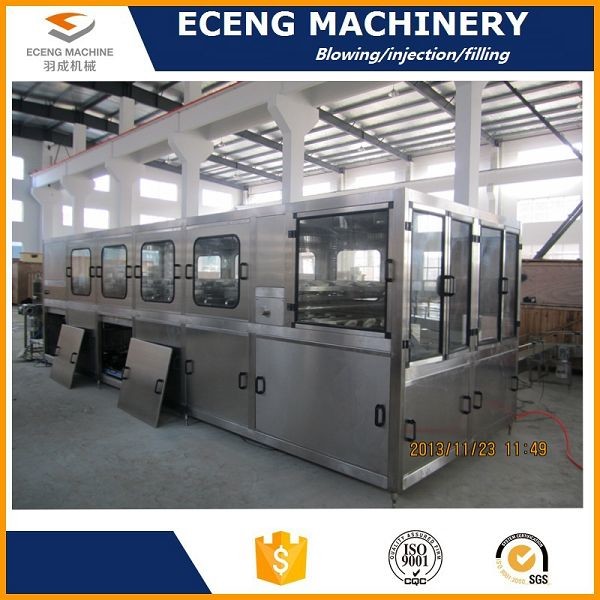

5 gallon barrel water bottle washing filling capping machine

This filling line specially for 3-5gallons barreled drink water, intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together.

Parameters:

High Speed 3 In 1 Filling Machine With Automatic Washing And Capping Function

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900
Filling heads	1	2	3	4	6
Volume(L)	20	20	20	20	20
Capacity(bph)	100	300	450	600	900
Gas consumption(m3/min)	0.37	0.6	0.8	1	1.5
Motor power(kw)	1.38	3.8	5.6	7.5	9.75
Weight(kg)	680	1500	2100	3000	3500
