Infrared Heating System Blow Injection Molding Machine , Pet Blowing Machine

Name: Infrared Heating System Blow Injection Molding Machine Pet Blowing Machine
Brand: Eceng
Price: 1 USD

China Infrared Heating System Blow Injection Molding Machine , Pet Blowing Machine wholesale

Brand Name : Eceng

Model Number : YCQ-5L-1

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : single

capacity : 800BPH

PLC : Mitsubishi

Cylinder : SMC

material : Pet preform

color : orange

Contact Now

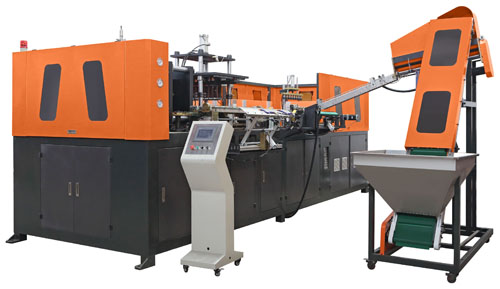

Standard 5 L PET bottle forming machine/automatic plastic bottle-blower/linear stretch 5L bottle blowing

YCQ-5L-1/2/3 is a two step fully automatic blow moulding machine specially designed for 5-liter edible oil bottle production, the best choice for productions with big volume, high speed and full automation. It has 3 cavities with up to 5 liters for each cavity, suitable as well for other bottles above 2 liters, like carbonated drinks, low-middle temperature juice beverage, mineral water, and pesticide, etc.

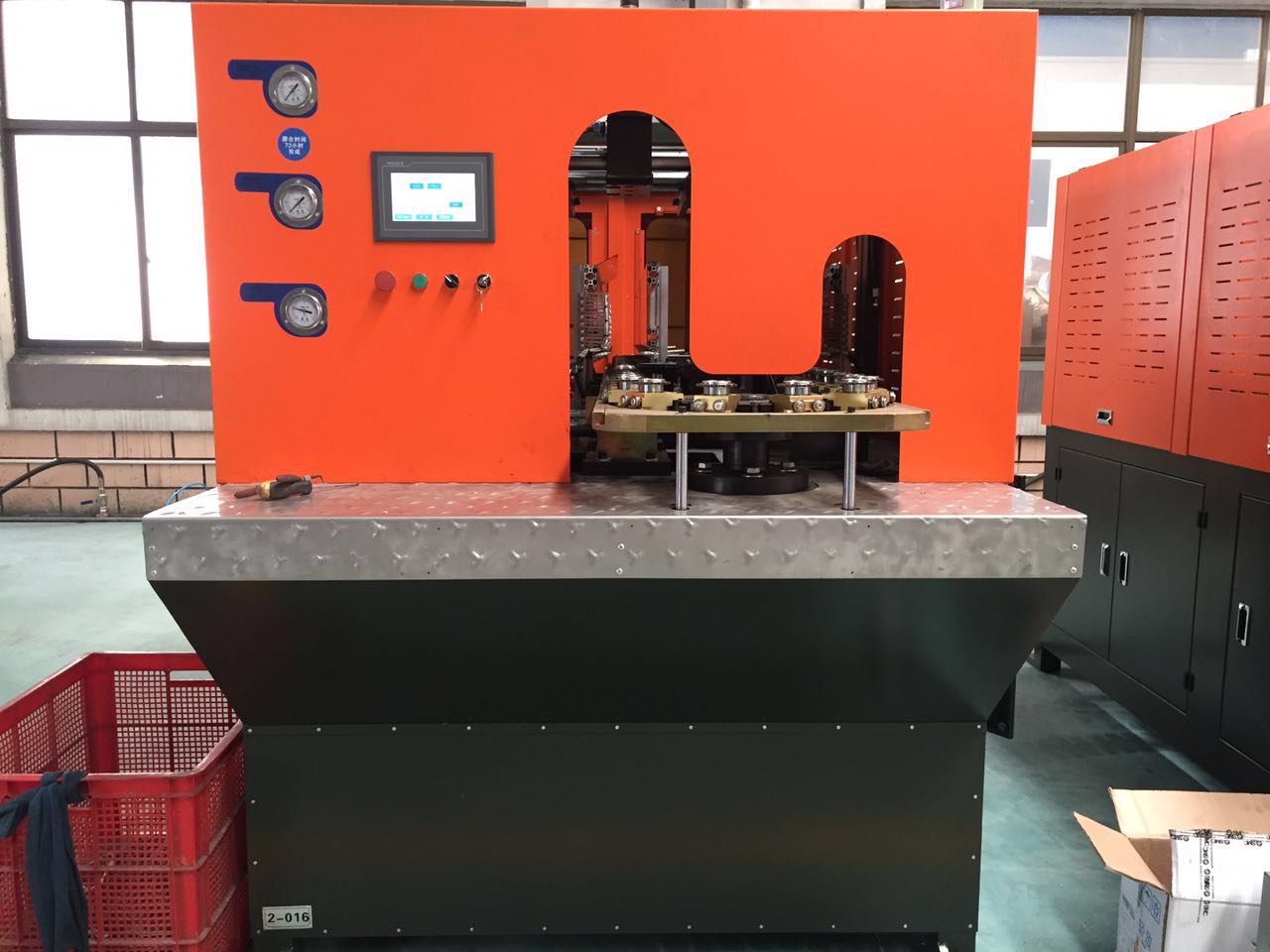

Infrared Heating System Blow Injection Molding Machine , Pet Blowing Machine

10/20L PET Bottle Making Machine – Big Bottle

Edible Oil Bottle Blowing Machine Features:
1). High Automatization.
2). The machine can be controlled through a touch screen and running status is shown on it.
3). High Quality: Steady infrared heating system blowing and the highly precise blow-mould closing system ensures quality.
4). High Speed:2800-3500BPH(3-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air, and water.
7). High Transparency: Easy maintenance, absolute safely, low noise.

Item	YCQ-5L-1	YCQ-5L-2	YCQ-5L-3	YCQ-5L-4
Cavity	1	2	3	4
Theory output	1200-1500	1500-2200	3000-3500	4000-4500
Max.volume	5L	5L	5L	5L
Bottle mouth maximum overall diameter	150mm	150mm	150mm	150mm
Bottle biggest diameter	180mm	180mm	180mm	180mm
Bottle maximum height	400mm	400mm	400mm	400mm
Light tube quantity	32pcs	32pcs	32pcs	32pcs
Light tube power	1KW	1.5KW	2KW	2KW
Maximum heating power	32KW	48KW	64KW	64KW
All electric machine installation	35KW	51KW	67KW	67KW
Actual consumption	17.5KW	25.5KW	46.9KW	46.9KW
Work pressure	7-9kg/c㎡	7-9kg/c㎡	7-9kg/c㎡	7-9kg/c㎡
Low-pressure gas consumption	1200L/min	1600L/min	1600L/min	1600L/min
Blow bottle pressure	25-35kg/c㎡	25-35kg/c㎡	25-35kg/c㎡	25-35kg/c㎡
Higher -pressure gas consumption	2000-2500Ltr/min	3400Ltr/min	4000Ltr/min	4000Ltr/min
Work pressure	5-6kg/c㎡	5-6kg/c㎡	5-6kg/c㎡	5-6kg/c㎡
Temperature range	10℃	10℃	10℃	10℃
Consumption	4000kcal/hr	6000kcal/hr	8000kcal/hr	8000kcal/hr
Forzen water flow	30L/min	50L/min	88L/min	88L/min
Size of the machine	2.4×1.5×1.7	4.7×1.6×1.9	7.7×1.6×1.9	7.7×1.6×1.9
Weight of the machine	2ton	3ton	5ton	5ton
