25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles

Name: 25kw Security Bottle Blow Molding Machine Machine To Make Plastic Bottles
Brand: Eceng
Price: 1 USD

China 25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles wholesale

Brand Name : Eceng

Model Number : YCQ-2L-2

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : 2

power : 24

capacity : 2200

cylinder : SMC

warranty : 1year

color : orange

Contact Now

Model	ITEM	YCQ-2L-2	YCQ-2L-4
Productivity	Depend on bottle design	1800-2400PCS/H	3600-4400PCS/H
Product type	Volume	0.1-2L	0.1-2L
	Body diameter	less 100mm	less 100mm
	Height	less 310mm	less 310mm
	Neck diameter	38mm	38mm
Mould	Cavity	2	4
	Mold thickness	240mm	240mm
	Mold size	260240370mm	510240360mm
Main machine power	Electrical source power	380V/220V 50/60HZ 3Phase	380V/220V 50/60HZ 3Phase
	Power	25kw	49kw
	Really use power	6.5kw	13kw
Air system	HP air compressor	1.4 m3/min 3.0Mpa	2.0 m3/min 3.0Mpa
	LP air compressor	1.0 m3/min 1.0Mpa	1.6 m3/min 1.0Mpa
	Air Tank	0.6m3 3.0Mpa	0.6m3 3.0Mpa
	Air dryer	1.0m3/min 3.0Mpa	2.0m3/min 3.0Mpa
Cooling water	Water Chiller	3HP	3HP
Machine	Size(LWH)	190012801930mm	190018601930mm
Machine	Weight	2000kg	3600kg
Preform unscrambler	Size(LWH)	20009502480mm	20009502480mm
Preform unscrambler	Weight	250kg	250kg

Features:

CM-A2/A4 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used for producing the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle and hot filling bottle etc.

*Reasonable design, full automaticlly control, save power and labor.

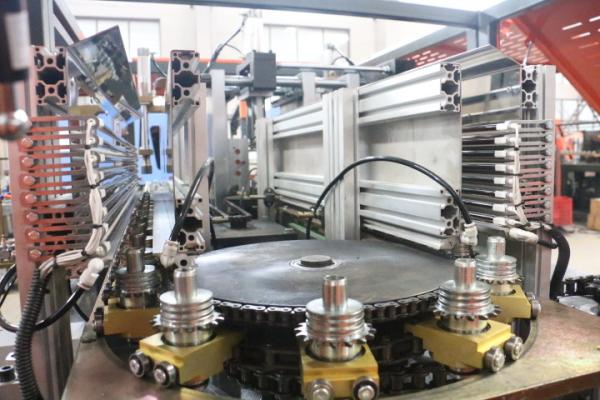

*Feeding system carries the preforms by robot arms automatically.
*Infrared oven heater adopts the quartz lamp to heat the PET tube.
*Fully automatic process with low investment, high efficiency,quick and safe for operation, easy for maintenance.
*We have perfect service after sales .
*Adopting high quality components.

25kw Security Bottle Blow Molding Machine , Machine To Make Plastic Bottles
