Bagger Packaging machines for empty PET bottels
Technical Parameter

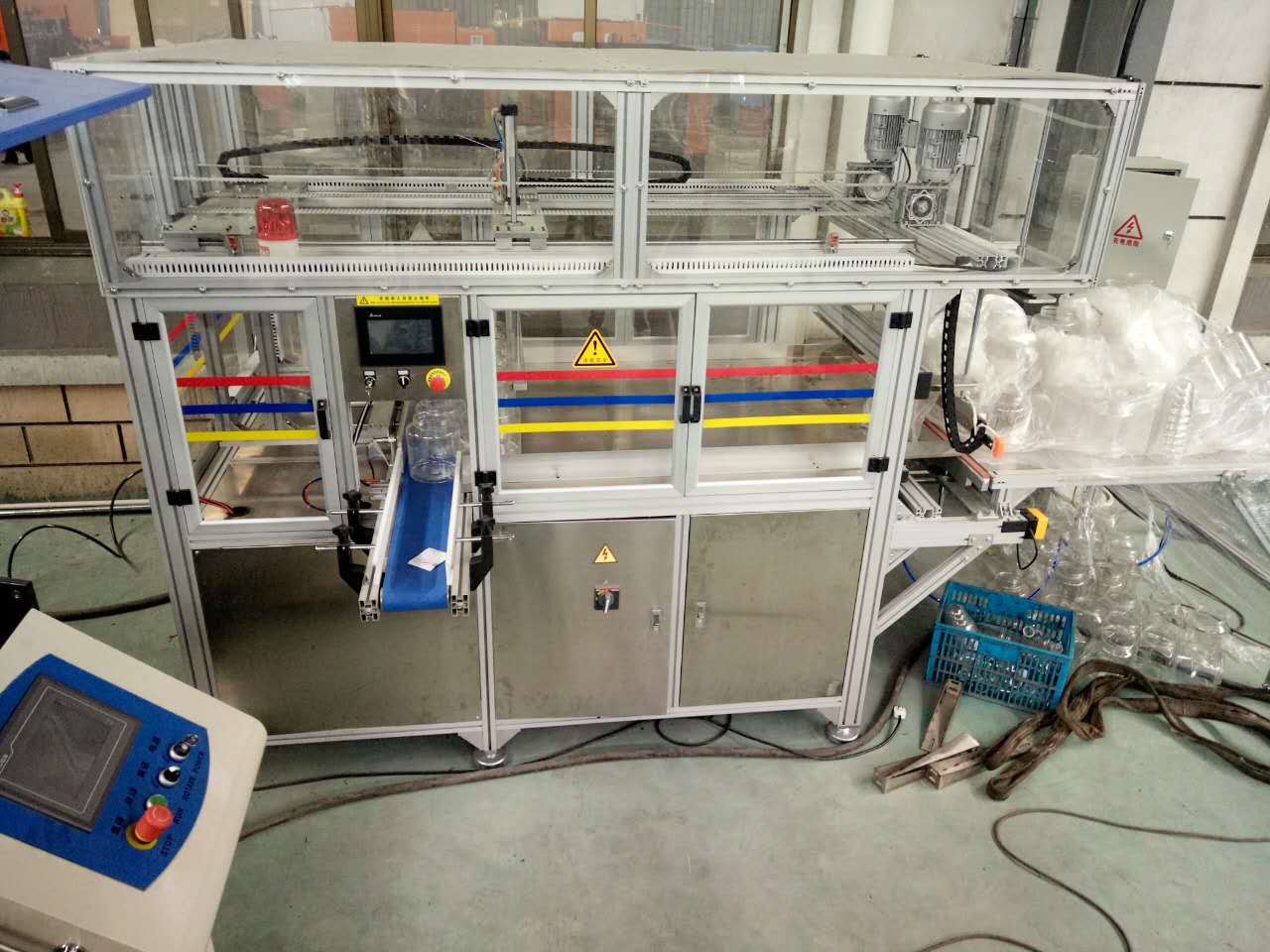

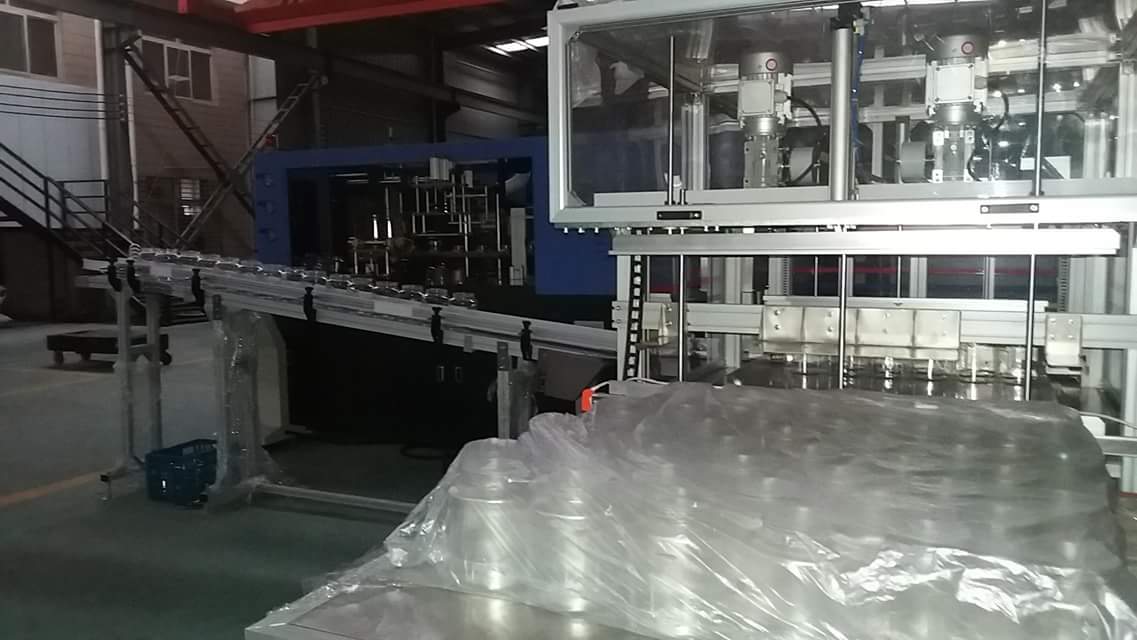

Eceng automatic bagging machine is designed to pack empty plastic containers into prepared plastic bags. The packing speed can be as much as 8,000 bottles per hour, which can improve the productivity greatly and reducing labor cost at the same time. This machine can bag plastic containers ranging from 200ml to 5L. It can be in line integrated with other bottle making equipments such as blow molding machine and labeling machine, fulfilling a full automatic production line for plastic containers.
Features
1. Freestanding in-feed conveyor whose speed can be adjusted
2. Bottle pusher with positioning devices
3. Operator Touch Panel of 7 inches
4. Displays of alarms and failing causes; warning signs for full bags
5. Thermo device for sealing the bags
6. Can pack different sizes of bottles and different shapes of bottles
7. Operator language in English
This machine is designed to pack rectangular empty plastic containers. This machine uses pre-made plastic bags, which are manually placed on the bagger by the operator. It is capable to pack more than one type of bottles, and can be easily fulfilled by changing the bottle pusher and the transit sheet.
Specifications
| Item | Specifications | Remarks |
| Container requirements | 200ml-5L, Ranging from 200 ml to 5L; the ratio between height and diameter should be less than 4 | |
| Packing sizes | (400-1200)*(400-650)*(50-300)(L*W*H) Length: 400 to 1200 mm; Width: 400 to 650 mm | |
| Conveyor length | Standard conveyor: L*W 2200mm*114.3mm | Can be customized. |
| Conveyor height | 850±50 mm | Can be customized. |
| Air pressure | 6-8 Bar | Supplied by the purchaser |
| Power consumption | 2KW | |
| Output | 3,000 to 4,000 per hour for 500 ml bottle | |
| Main Specifications | PLC-- MITSUBISHI /Japan Touch screen –SIEMENS- Germany Laser probe--Autonics/ Korean Air valves-- FESTO / Germany penumatic and cylinder --FESTO / Germany | |
| Warranty Period | 2 year ALL FREE PART SEND | |
Electric appliance of our machine(canadjustment)
| 1 | Main electronic parts | SIEMENS/GERMANY |
| 2 | Electricprotectionswitch | SIEMENS/GERMANY |
| 3 | Circuit breaker | SIEMENS/GERMANY |
| 4 | Transducer | MITSUBISHI/JAPAN |
| 5 | Photo electricity switch | AUTONICS/KOREA |
| 6 | Pressuresensor | SMC/JAPAN |
| | | |
| 7 | Motor | SIEMENS/GERMANY |
