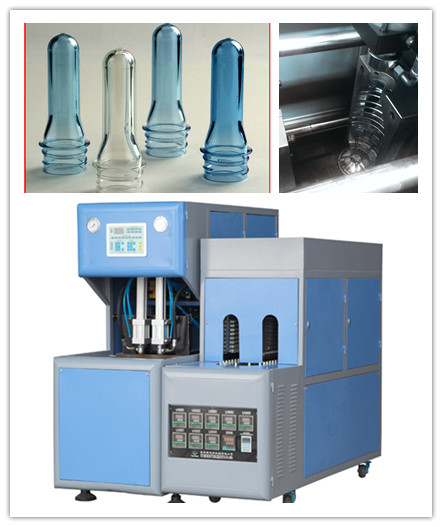

Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater

Name: Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater
Brand: Eceng
Price: 1 USD

China Pneumatic System Semi Auto Blowing Machine With Infrared Lamps Preform Heater wholesale

Brand Name : Eceng

Model Number : YC-2L-2

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : 2

condition : new

capacity : 800BPH

Color : Blue

warranty : 1 year

weight : 800KG

Contact Now

3 years no complaint ce certificate YC-2L-2 Semi-auto blowing molding machine

suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.

1,Infrared lamps adoped in the pre-heater ensures PET preforms being heated evenly.
2,Mechanical-double-arm calmping ensures mould being tightly closed under hight pressure and high temperature.
3,Pneumatic system consists of two parts. pneumatic acting part and bottle blowing part in order to meet different requirements for both acting and blowing. It provides sufficient steady high pressure to blowing. It provides sufficient steady high pressure to bloww large irregular shape bottles.
4,Equipped with silencer and oiling system to lubricate the mechanical pars of the machine.
5,Operated step-by-step and in semi-auto maode.
6,Wide-mouth jar and hot-fill bottles can also be made.

Specification:

TYPE	ITEM	MEASUREMENT	YC-2L-2 Combined type	YC-2L-2 Standard type
END PRODUCT	Material	/	PET/PP/PE/PC	PET/PP/PE/PC
	Volume	L	0.05-2.5(2-cavity) 3-6(1-cavity)	0.05-2.5 (2-cavity) 3-6 (1-cavity)
	Theoretical output	Pcs/h	0.05-2.5L/1700 3-6L/800	0.05-2.5L/850 3-6L/400
	Max.length	mm	360	360
	max.diameter	mm	180	180
MOULD PLATE	Max.mould plate dimension(L×H)	mm	420×500	420×500
	Max.mould thickness	mm	160-240	160-240
	Clamping force	KN	90	90
	Mould opening stroke (adjustable)	mm	200	200
AUXILARY	High pressure Compressor M3/Mpa	KW	>=0.70/3.0×1set 22	>=0.7/3.0×2sets 22
AUXILARY	Precision air filters	M3/Mpa	>=1.0/3.0×2pcs	>=1.0/3.0×2pcs
MAIN MACHINE ELECTRICITY	Power	KW	12	12
MAIN MACHINE ELECTRICITY	Voltae/Frequency	V/HZ	220-380/50-60
MACHINE SIZE AND WEIGHT	Main body dimension(L×W×H)	M	1.45×0.6×1.75	1.45×0.6×1.75
	Main body weight	T	0.6	0.6
	Conveyor dimension(LWH)	M	1.40×0.62×1.25	1.40×0.62×1.25
	Conveyor weight	T	0.22	0.22
SAFTY	Auto-emergency alarm	SAFETY INTER-LOCKING DEVICE
