High Output Mineral Water Bottle Manufacturing Machine , Preform Blowing Machine

Name: High Output Mineral Water Bottle Manufacturing Machine Preform Blowing Machine
Brand: Eceng
Price: 1 USD

China High Output Mineral Water Bottle Manufacturing Machine , Preform Blowing Machine wholesale

Brand Name : Eceng

Model Number : YC-2L-4

Certification : CE&SGS&ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 30 working days

Packaging Details : Film pack

cavity : 4

PLC : Mitsubishi

Cylinder : SMC

capacity : 2400

material : pet perform

color : orange

Contact Now

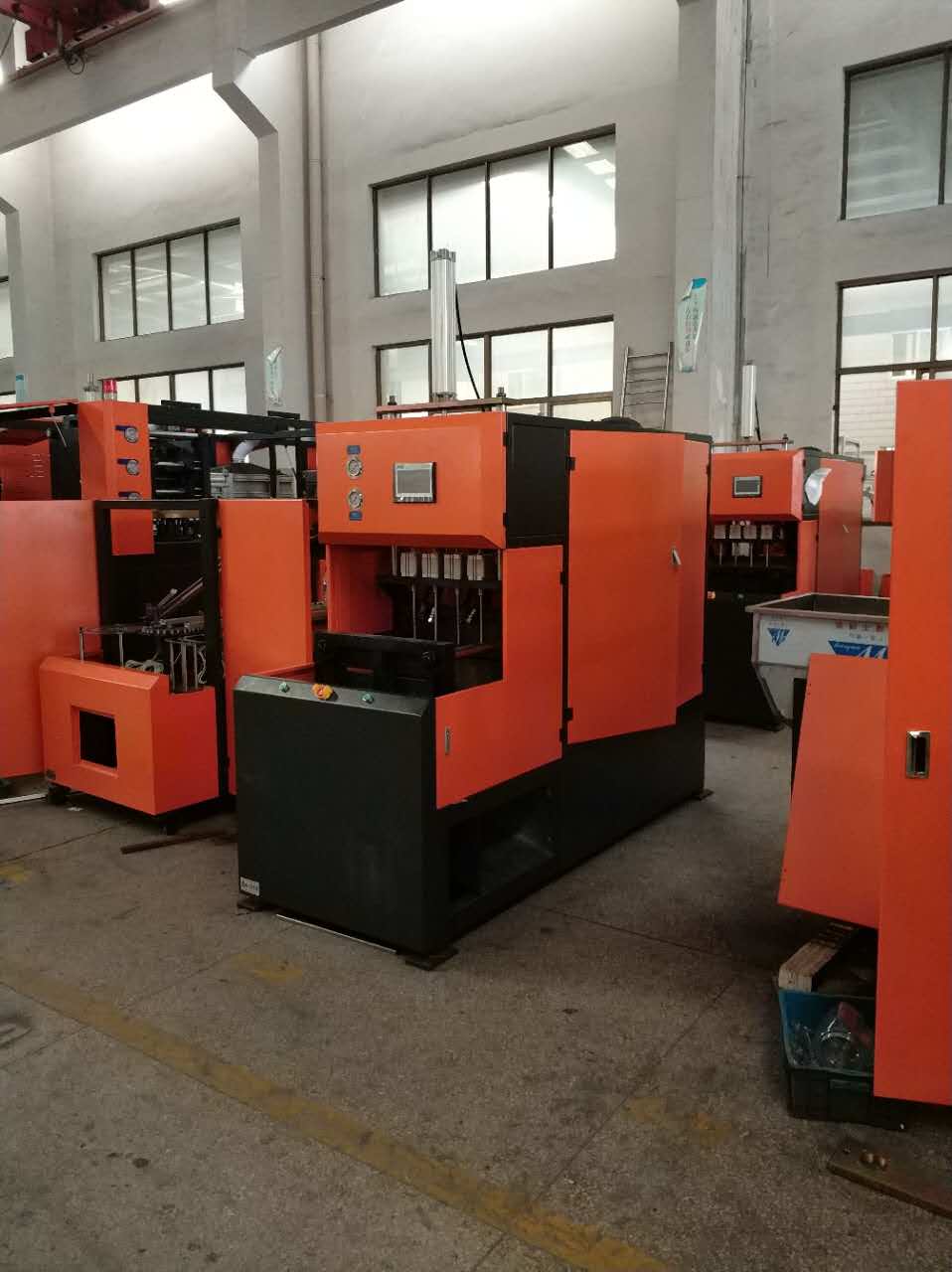

Semi-automatic PET Bottle Blowing Machine / Stretch BLower

Semi-Automatic Bottle Blowing Machine Features:

YC semi-automatic stretch bottle blowing machine with microcomputer controlling system. PET bottle blowing machine controls various technical parameter needed more accurately and more steadily. Only one person without special training operates pet bottle machine more easily and more safely. YC semi-automatic stretch bottle blowing machine is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.

Model type	Tech data
Max. product volume(L/cav)	2	5.5	20	2
Max. preform neck size(mm)	100	150	200	100
Max. product diameter(mm)	180	200	400	180
Max. product height (mm)	300	400	600	300
Cavities	2	1	1	4
Die force (KN)	100	120	150	500
Die stroke (mm)	270	320	340	270
Max. mould size(mm)	390*345	390*350	420*500	460*345
Mould thickness	Adjustable	Mould thickness	Adjustable
Mould spacing(mm	Adjustable	Adjustable	400	120
Max. pulling stroke(mm)	400	500	500	400
Operation pressure(Mpa)	0.8-1.0	0.8-1.0	0.8-1.0	0.8-1.0
Operation air pressure consumption (1tr/min)	200	350	560	200
Blow pressure(Mpa)	1.2-2.8	1.2-2.8	1.2-2.8	1.2-2.8
Blow air pressure consumption (1tr/min)	300	300	650	300
Output(pcs/h	1000-1800	1000-1600	600-900	1000-1800
Machine size(LxWxH)(m)	1.460.581.8	1.560.71.9	2.180.771.96	1.460.581.8
Machine weight(KG)	650	700	1000	650
Temperature grade(rate)	8	8	8	8
Heating time(S)	90-200	90-200	90-200	90-200
Voltage(V)	220 or as your request	220 or as your request	220	220 or as your request
Frequency(HZ)	50/60	50/60	50/60	50/60
Total power(KW)	16	16	15-40	16
Oven Size (LxWxH)	1.350.551.15	1.450.651.15	2.370.681.65	1.350.551.15
Oven weight (KG)	300	330	380	300
