New condition semi automatic pet bottle blowing machine

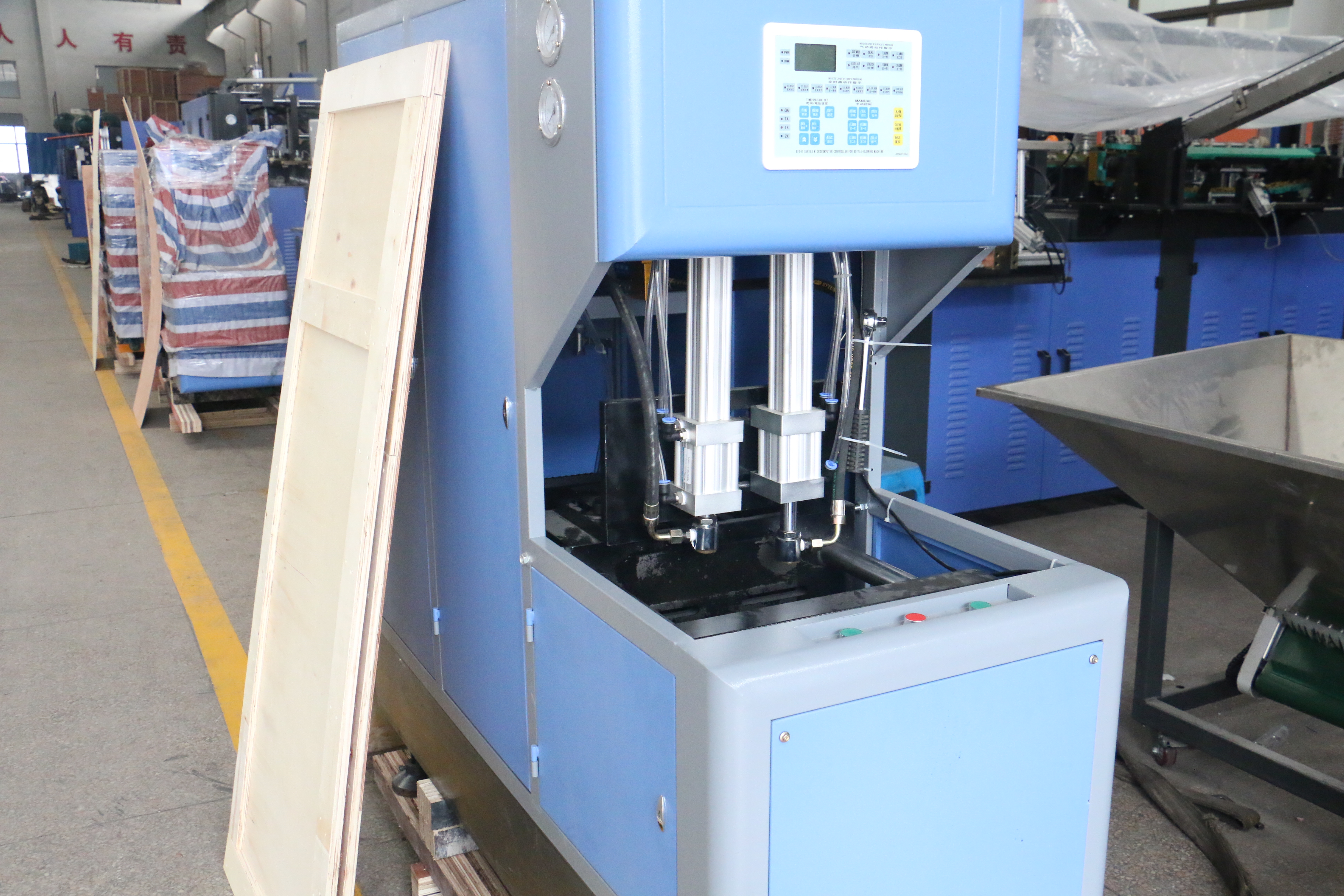

Introduction of semi-automatic PET bottle blow molding machine
Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.
High responsiveness pneumatic components,action timely and precisely
Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation
Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.
| Main machine (blowert + oven) | Model type | Tech data |
| Product Spec | Max. product volume(L/cav) | 2 |
| Max. preform neck size(mm) | 100 |
| Max. product diameter(mm) | 180 |
| Max. product height (mm) | 300 |
| Cavities | 2 |
| Blow molding part | Die force (KN) | 100 |
| Die stroke (mm) | 270 |
| Max. mould size(mm) | 390*345 |
| Mould thickness | Adjustable |
| Mould spacing(mm) | |
| Max. pulling stroke(mm) | 400 |
| Operation pressure(Mpa) | 0.8-1.0 |
| Operation air pressure consumption (1tr/min) | 200 |
| Blow pressure(Mpa) | 1.2-2.8 |
| Blow air pressure consumption (1tr/min) | 300 |
| Output(pcs/h) | 1000-1800 |
| Machine size(LxWxH)(m) | 1.46*0.58*1.8 |
| Machine weight(KG) | 650 |
| Oven | Temperature grade(rate) | 8 |
| Heating time(S) | 90-200 |
| Voltage(V) | 220 or as your request |
| Frequency(HZ) | 50/60 |
| Total power(KW) | 16 |
| Oven Size (LxWxH) | 1.35*0.55*1.15 |
| Oven weight (KG) | 300 |
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours train from Shanghai by fast train. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the payment of your machines ?
A:30% by T/T as down payment, 70% by T/T or L/C before shipment
4.Q:What is the delivery of your machines ?
30 days after down payment and drawing comfirmed
