Brand Name : Eceng
Model Number : YC-2L-2
Certification : CE&SGS&ISO
Place of Origin : China
MOQ : 1set
Price : discuss
Payment Terms : L/C, T/T, Western Union
Supply Ability : 10 sets per month
Delivery Time : 15 working days
Packaging Details : Film pack
cavity : 2
power : 12KW
capacity : 800BPH
usage : plastic bottle
Max volume : 2L

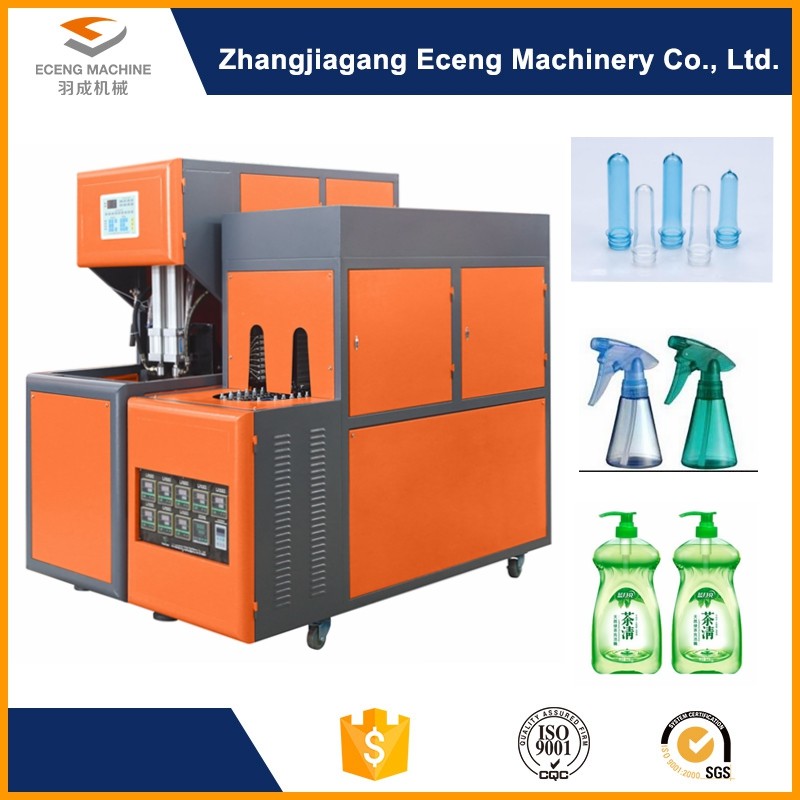

semi automatic low cost PET bottle stretch blow molding machine 100ml-2L 2/4 cavity
YC-2L series designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. YC-2L-2 is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles , especially oil bottles with handles.
Technology advantage:
Special design,high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation,no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke,quick action
All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
Hig dead-weigh, ensure the steady during the opeartion
Parameters:
Main machine | Model type | YC-2L-2 | YC-2L-4 |
Product Spec | Max. product volume(L/cav) | 2 | 2 |
Max. preform neck size(mm) | 100 | 100 | |
Max. product diameter(mm) | 180 | 180 | |
Max. product height (mm) | 300 | 300 | |
Cavities | 2 | 4 | |
Blow molding part | Die force (KN) | 100 | 100 |
Die stroke (mm) | 270 | 270 | |
Max. mould size(mm) | 390*345 | 390*345 | |
Mould thickness | Adjustable | Adjustable | |
Mould spacing(mm) | Adjustable | Adjustable | |
Max. pulling stroke(mm) | 400 | 400 | |
Operation pressure(Mpa) | 0.8-1.0 | 0.8-1.0 | |
Operation air pressure consumption (1tr/min) | 200 | 200 | |
Blow pressure(Mpa) | 1.2-2.8 | 1.2-2.8 | |
Blow air pressure consumption (1tr/min) | 300 | 300 | |
Theory Output(pcs/h) | 800-1000(500ml) | 2600-2800(500ml) | |
Machine size(LxWxH)(m) | 1.46*0.58*1.8 | 2.0*2.0*2.3 | |
Machine weight(KG) | 650 | 1000 | |
Oven | Temperature grade(rate) | 8 | 8 |
Heating time(S) | 90-200 | 90-200 | |
Voltage(V) | 220 or as your request | 220 or as your request | |
Frequency(HZ) | 50/60 | 50/60 | |
Total power(KW) | 16 | 16 | |
Oven Size (LxWxH) | 1.7*0.55*1.15 | / | |
Oven weight (KG) | 300 | / |
![]() |
