Durable Pet Bottle Blow Moulding Machine Use For Juice Bottle / Water Bottle / Jar Bottle

Name: Durable Pet Bottle Blow Moulding Machine Use For Juice Bottle Water Bottle Jar Bottle
Brand: Eceng
Price: 1 USD

Brand Name : Eceng

Model Number : k6

Certification : ce , iso

Place of Origin : Zhangjiagang

MOQ : 1

Payment Terms : L/C, T/T, MoneyGram

Delivery Time : 45 days

Packaging Details : woden package

Application : pet bottle making machine

Condition : new

Blow moulding type : stretch blow moulding

Automatic : yes

Voltage : 380V/50HZ

Weight : 6.1tons

material : pet preform

color : black

Contact Now

Durable Pet Bottle Blow Moulding Machine Use For Juice Bottle / Water Bottle / Jar Bottle

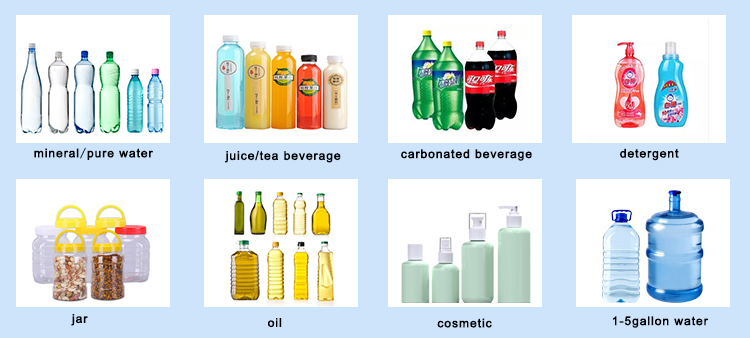

K series Full Automatic Stretch Blow Molding Machine, from four cavity to eight, produce the container max to 2L, used for the series kinds of PET bottle, such as the edible oil bottle,medicinal bottle, drinking bottle, cosmetic jar, mouth bottle and so on.

Durable Pet Bottle Blow Moulding Machine Use For Juice Bottle / Water Bottle / Jar Bottle

Model K6
Bottle type specification	Cavity	6
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-30mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Capacity specification	Theory output	9000~12000BPH
	Bottle type volume	500ML
	Bottle type weight	17g
	Bottle type	Round
Power specification	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	49KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	8000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	8000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	5.5x1.8x1.9
Machine specification	Machine weight	6.1ton

Durable Pet Bottle Blow Moulding Machine Use For Juice Bottle / Water Bottle / Jar Bottle
