Product Description

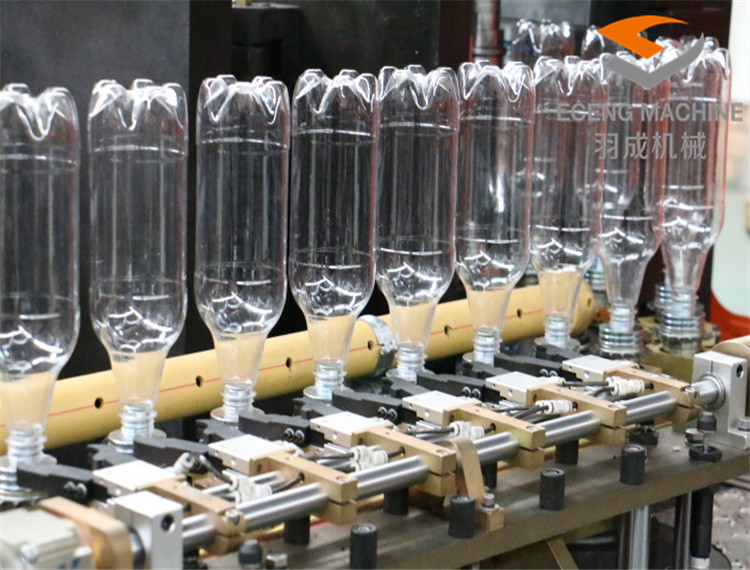

K series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
| Item | K4 | K6 | K8 |
| Cavity | 4 | 6 | 8 |
| Theory output | 6000-8500BPH | 9000-12000 | 12000-16000 |
| Max.volume | 2L | 2L | 2L |
| Bottle mouth maximum overall diameter | 28-38mm | 28-38mm | 28-38mm |
| Bottle biggest diameter | 100mm | 100mm | 100mm |
| Bottle maximum height | 330mm | 330mm | 330mm |
| Light tube quantity | 16pcs | 32pcs | 32pcs |
| Light tube power | 1.25KW | 1.25KW | 1.5KW |
| Maximum heating power | 20KW | 40KW | 48KW |
| All electric machine installation | 29KW | 49KW | 65KW |
| Actual consumption | 30%-60% | 30%-60% | 30%-60% |
| Work pressure | 5-6kg/c | 5-6kg/c | 5-6kg/c |
| Blow bottle pressure | 25-45kg/c | 25-45kg/c | 25-45kg/c |
| Higher -pressure gas consumption | 6000Ltr/min | 8000Ltr/min | 12000Ltr/min |
| Work pressure | 5-6 kg/c | 5-6 kg/c | 5-6 kg/c |
| Temperature range | 10ºC | 10ºC | 10ºC |
| Consumption | 8000kcal/hr | 8000kcal/hr | 12000kcal/hr |
| Forzen water flow | 30L/min | 88L/min | 88L/min |
| Size of the machine | 3.6*1.6*1.9(m) | 4.8x1.6x1.9 | 5.78x1.6x1.9 |
| Weight of the machine | 4.3ton | 6.1ton | 7.45ton |

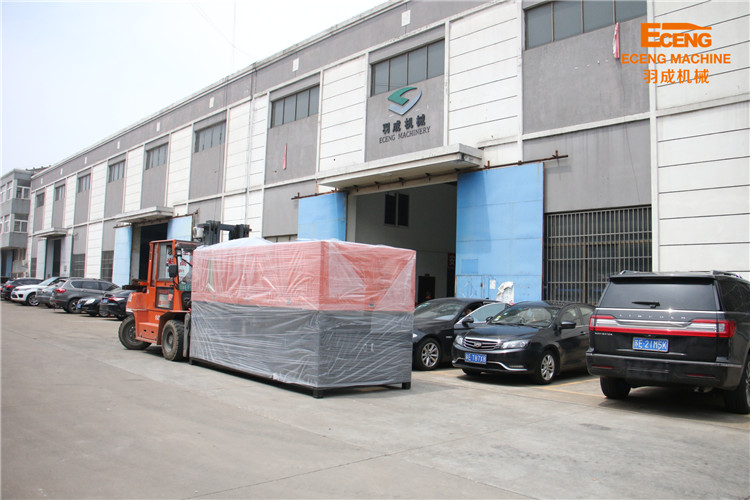

Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!
welcome to you visit our factory!!!
